ANDRITZ TX68 twin refiner

Think big, think TX

High-capacity, high-performance TX68 refiner

ANDRITZ has designed a broad range of high-consistency (HC) refiners to meet the demands of pulp, paper, and panelboard producers. At the top of the line in terms of throughput and motor power is the TX68 twin refiner.

© Croce

With unmatched design capacity, the TX68 refiner is exceptional when it  comes to HC refining.

One look at its design and build shows why it can achieve continuous high throughput, high speed, and long life:

PRECISE, CONSTANT REFINING GAP

ADVANCED FEEDING FOR HIGHEST CAPACITIES

EASY AND FAST PLATE CHANGES

AND LATEST IIOT FEATURES

ANDRITZ TX68 twin refiner - high capacity, high performance

© Croce

DESIGN PRINCIPLE

  • Twin-disc refiner with two flat refining zones
  • Simple supported shaft with bearing units on each side of the rotating disc
  • Two floating stators; fixed rotor

APPLICATIONS

  • ATMP*: ANDRITZ process for softwood
    (*Advanced Thermo Mechanical Pulping)
  • P-RC APMP*: ANDRITZ process for hardwood
    (*Pre-conditioning Refiner Chemical Alkaline Peroxide Mechanical Pulp)

Find out more ...

pp-reasearchdevelopment-focusonfibers

ANDRITZ ATMP process

Advanced TMP (ATMP) – focus on energy savings and improved mechanical fibers

Read more
ANDRITZ S2070 refiner used in mechanical pulping process

ANDRITZ P-RC APMP process

P-RC APMP (Pre-conditioning Refiner Chemical Alkaline Peroxide Mechanical Pulp) - best fibers at minimum energy demand

Read more
Contact us
ANDRITZ AG
Paper, Fiber and Recycling Division
Get in contact
Downloads

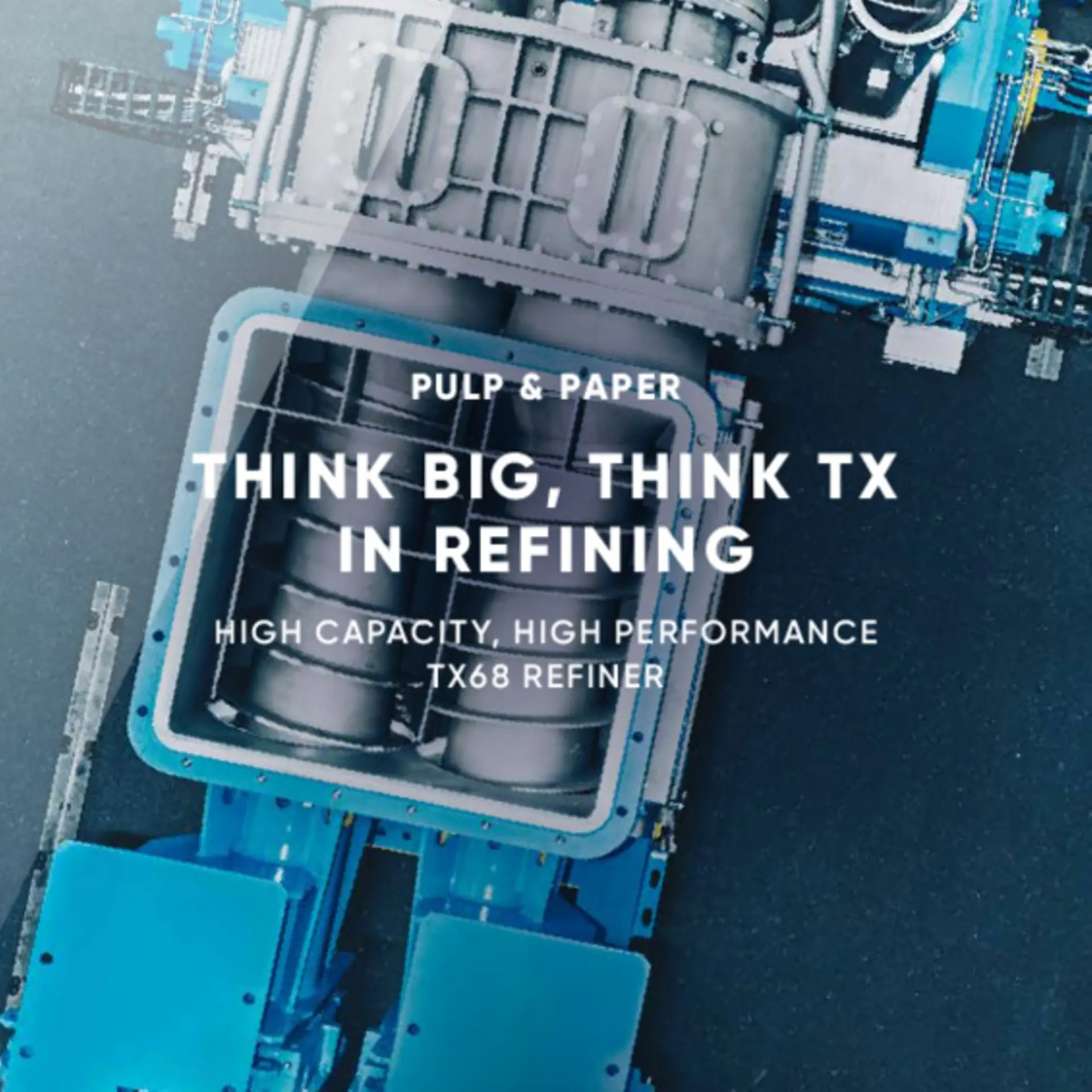

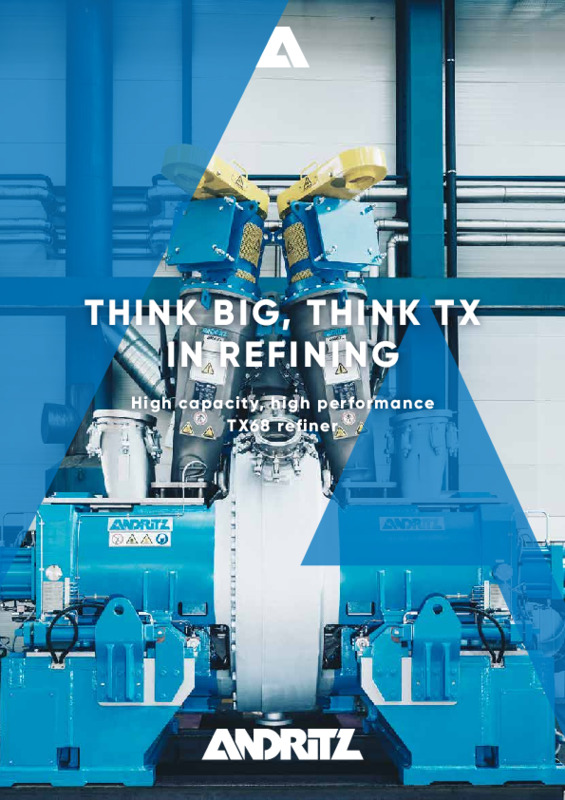

  • TX68 Refiner
